Leupold Mark 3HD 1.5-4x20 AR-Ballistic
Leupold Mark 3HD 1.5-4x20 AR-Ballistic
The Mark 3HD™ was built for any shooter who needs a rugged, precise, and repeatable MIL-based scope for their tactical rifle. The 1.5-4x20mm model provides a wide field of view, while also allowing for precise, close to mid-range shots.
Leupold has a long history of manufacturing rugged and reliable riflescopes that outperform and outlast everything else on the battlefield and in competition. Leupold use that heritage to create an extremely versatile line of tactical scopes. The Mark 3HD™ 1.5-4x20mm provides a wide field of view, while also allowing for precise, close to mid-range shots.
Complete with MIL-based adjustments and reticles, HD performance, an exposed elevation adjustment dial, and a low-profile power selector with integrated throw lever, the Mark 3HD series is perfect for anyone who needs a rugged, precise, and repeatable scope. Built around Leupold’s Elite Optical System, it offers the light transmission, glare reduction, and resolution that diehard hunters and shooters demand for all-day performance.
And like every Leupold® riflescope, the Mark 3HD was designed, machined, and assembled in our Oregon factory. We test it to ensure it's absolutely rugged, 100% waterproof and fogproof, and then we guarantee it for a lifetime of performance.
- Specifically designed for .223 AR-style rifles
- Based on a Duplex® style design
- Provides holdover hash marks for quick target engagement
- Uses a 200 yard zero with aiming points out to 600 yards
- Rear (second) focal plane
| BDC Dial Included | No |
|---|---|
| Custom BDC Dial Compatible | No |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |

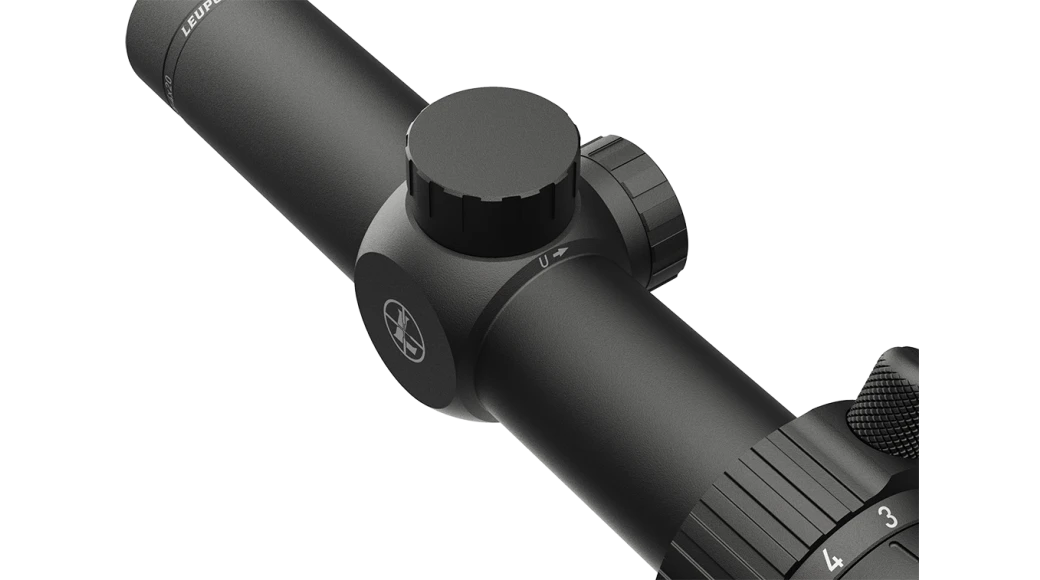

| Elevation Adjustment Type | Finger Click |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Illuminated | No |
| Light Management System | Elite Optical System |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | No |
| Reticle | AR-Ballistic |
| Rezero Type | Resettable Index Ring |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Side Focus | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 12.4 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 115 |
| Elevation Adjustment Range (MIL) | 33.5 |
| Elevation Adjustment Range (cm @ 100m) | 334.5 |
| Elevation Adjustment Per Revolution | 5 MIL |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 115 |
| Windage Adjustment Range (MIL) | 33.5 |
| Windage Adjustment Range (cm @ 100m) | 334.5 |
| Windage Adjustment Per Revolution | 5 MIL |
| Magnification Max | 4 |
| Magnification Min | 1.5 |
| Objective Lens Diameter (mm) | 20 |
| Linear FOV Low Mag (ft@100yds) | 74.2 |
| Linear FOV High Mag (ft@100yds) | 29.3 |
| Angular FOV Low Mag (Degrees) | 14.1 |
| Angular FOV High Mag (Degrees) | 5.6 |
| Eye Relief Low Mag (in) | 4.2 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |

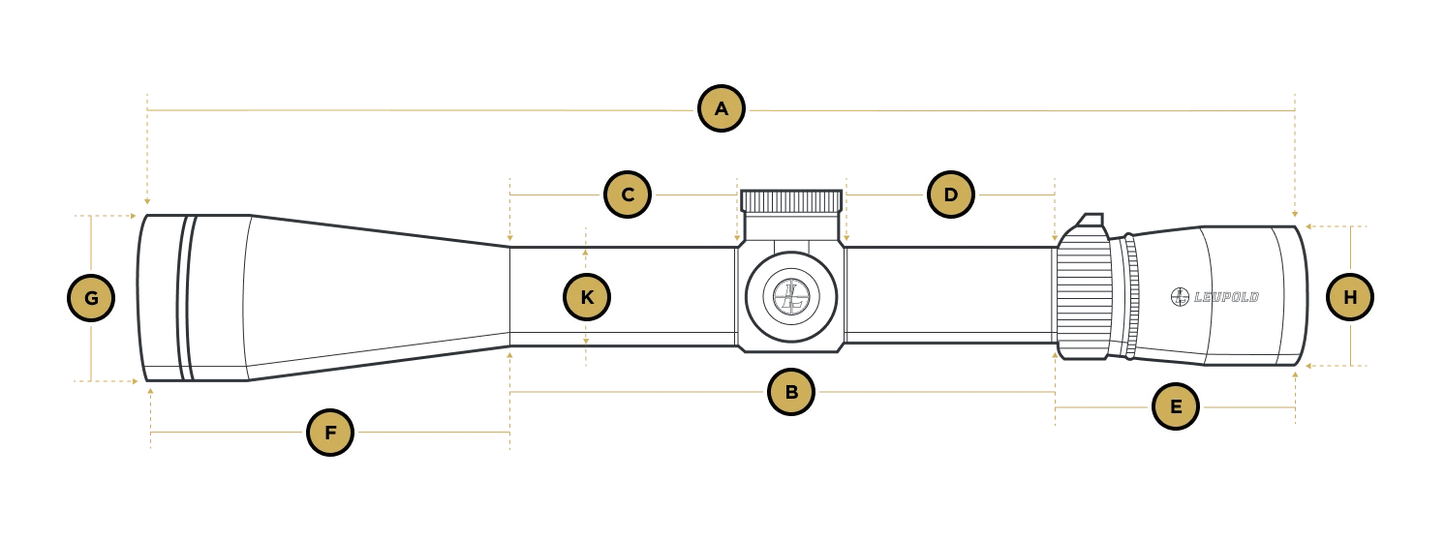

Scope Dimensions
| Total Length (in) - A | 9.5 |
|---|---|
| Total Mounting Space (in) - B | 5.2 |
| Front Mounting Space (in) - C | 2.2 |
| Rear Mounting Space (in) - D | 1.8 |
| Eyepiece Length (in) - E | 3.7 |
| Objective Length (in) - F | .6 |
| Objective Diameter (in) - G | 1.2 |
| Eyepiece Diameter (in) - H | 1.6 |
| Maintube Diameter (mm/in) - K | 30 mm |
